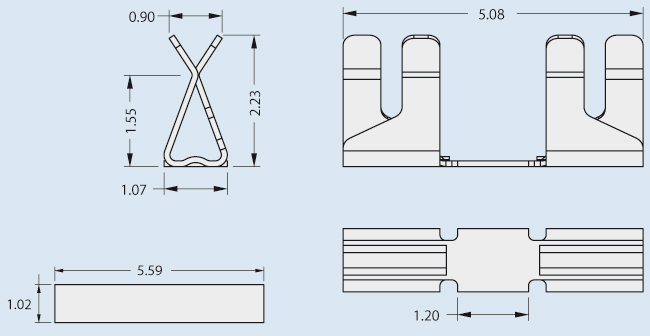

Medium clip on 中等夾子(MC)
The Medium clip on is used to mount PCB screening covers from the 1500 serie. This clip is used to mount on to the surface of the PCB (SMT) and offers a fast solution for assembling RFI/EMI shields to PCBs. This clip eliminates the need for through holes and post reflow operations on the PCB.
中等夾子用于裝配來自1500系列的PCB屏蔽蓋子。這個夾子被用于裝配在PCB(SMT)表面和為裝配RFI/EMI屏蔽到PCB提供了一個快速解決。這個夾子消除了在PCB上通孔和柱回流操作的需要。
This clip offers a great opportunity to do tuning and re-work after the assembly of the screening cover. Thickness of the screening cover can be 0.12 to 0.23 mm. This clip can be supplied on reels of 5000 pieces.
這個夾子在屏蔽蓋裝配之后提供了一個大的機會去做調(diào)整和返工。屏蔽蓋的厚度能是0.12 to 0.23 mm。這個夾子的供貨是卷的形式，每卷5000只。
The medium clip takes up 40% less space than the large version.與大夾子相比中等夾子占據(jù)的空間要少40%。
Material材料:
Beryllium Copper or鈹銅或
Cupro-Nickel銅-鎳 (Beryllium-free)
Finish涂覆層:
Tin or Tin/Lead 錫或錫/鉛
Packaging Format包裝形式:
Tape & Reel and Pieces 帶&卷和只
Reel Quantity卷數(shù)量:
5,000 on a Ø330mm reel
Contact Resistance接觸電阻:
Mini: 40 milliohms max
Shield Thickness屏蔽厚度:
0.12 – 0.23mm
Insertion force插入力 (max最大):
5.0N (0.17mm shield)
Withdrawal force拔出力 (max最大):
0.35N
Example舉例
When you order 8 Medium clips (MC) please specify the partnumber as follow:
當你訂購中等夾子（MC）時，請指定零件號，如下列：
|
Partnumber零件號 |
Amount |
|
MC |
8 |
|
|
Number of clips desired? The medium clip on can also be delivered on reels of 5000 pieces. Then specify 5000 |
